Overall Length: 34"
Overall Width: 25"
Overall Height: 35"
Height to Arm Rails: 25.5"
Folded Length: 46"
Folded Width: 25"
Folded Height: 12"
Seat Width: 16.5"
Seat Height (from floor): 20.5"
Seat Depth: 13"
Distance Between Arm Rails: 19.5"
Overall Weight with Battery: 50 lbs
Weight of Heaviest Piece: 27 lbs
Weight of Lightest Piece: 18 lbs
Battery Weight: 5 lbs
Weight Capacity: 275 lbs max capacity
Max Climbing Angle: 10° (ADA-compliant wheelchair ramps are 5° max.)
Rotation Radius: 33.4" (850 mm)
Battery Range: Up to 8 miles
Max Speed Range: 0 to 3.7 miles
Frame: 6061 aluminum, silver anodized and nylon composite
Motor: Brushless DC 24 volt, 220 watt x 2
Battery: 24 V 8.76Ah, 240 watt-hours, lithium-ion 4-lb highest quality cells
Charging Time: 4.5 hours or less

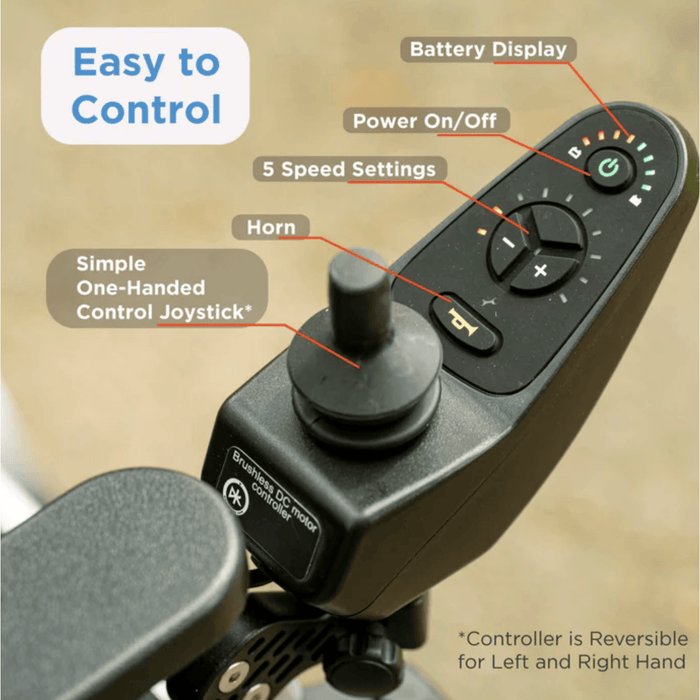

Steering/Braking System: Joystick
Armrests: Attached in factory and non-removable
Front Wheels: 8" solid
Rear Wheels: 10" solid
Anti-tip Wheels: 2" solid
Colors: Black, Blue
Warranty
Journey Health & Lifestyle™ warrants all our products to be free from defects in materials, workmanship and assembly. A standard twelve (12) months warranty from the original purchase date applies to the core list of Journey products under normal use in accordance with specifications and warnings and with some limitations, exclusions, restraints or extensions including but not limited to parts, labor, service and other specific considerations. (Specific additional limitations and extensions of warranty, particularly as they relate to the Journey Health & Lifestyle™ line of mobility products, can be found in the Addendum below.) If within the twelve-month warranty period, any component or part shall be proven to the satisfaction of Journey Health & Lifestyle™ to be defective, the product shall, at the option of Journey Health & Lifestyle™, be repaired or replaced. Contact Journey Health & Lifestyle™ before sending any product for warranty repair or replacement. Do not send any product without our prior written consent.
Limitations and Exclusions
This warranty does not cover damage, deterioration or malfunction resulting from accident, negligence, misuse, abuse, normal wear and tear, damage in shipment, improper operation or failure to follow instructions according to the User Manual, component failure, improper storage, neglect of prescribed maintenance procedures, repair or attempted repair or modifications made or authorized by anyone other than Journey Health & Lifestyle™, normal gradual reduction in battery performance due to heavy use, deterioration due to external factors such as extremes in temperature or humidity, corrosive atmosphere or other natural events such as lightning, flood or circumstances beyond the control of Journey Health & Lifestyle™.
Addendum
In addition to the previously cited provisions of the standard one-year warranty above, the frame, mechanical and electrical components including the motor of each mobility product in the Journey Health & Lifestyle™ mobility line is further specifically warrantied for the same twelve-month period. In addition, warrantied instead for a six- (6) month period are the originally supplied battery, tires, fabric seat, seat back and seat cushion, all guaranteed to be free from defects in materials and workmanship for a period of six (6) months from the original purchase date.
If, within such warranty period, any component or part shall be proven to the satisfaction of Journey Health & Lifestyle™ to be defective, the product shall at the option of Journey Health & Lifestyle™ be repaired or replaced with new or refurbished product components. In some cases an installation kit with instructions may be provided to the owner to facilitate installation of a replacement product component. Warranty relating to mobility products does not include any labor charges incurred in product component installation. The warranty period of the repaired or replaced product shall terminate with the termination of the warranty period for the original product. The sole obligation of Journey Health & Lifestyle™, and the customer’s exclusive remedy under this warranty, shall be limited to such repaired or replaced product.
